Industrial Ethernet Switch 90W 8-Port 10/100/1000T 802.3bt PoE + 100/1000M RJ45

Name: Industrial Ethernet Switch 90W 8Port 101001000T 8023bt PoE 1001000M RJ45
Brand: E-link
Price: 130 USD

Quality Industrial Ethernet Switch 90W 8-Port 10/100/1000T 802.3bt PoE + 100/1000M RJ45 for sale

Brand Name : E-link

Model Number : LNK-IMC108GP90

Certification : ISO9001, CE, ROHS, FCC

Place of Origin : China

MOQ : 1 pc

Price : US$130-US$145/PC

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-5 working days

Packaging Details : Industrial PoE Switch Standard Package

Packet Buffer Memory : 2.75M bits

Max Packet Length : 9K Bytes Jumbo Frame

Optical Port : 1 x 100/1000Base-X (SFP, SC, FC, ST Optional)

Input Power : 48~57VDC, Redundant Power (6-pin Terminal Block)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Dimensions (WxDxH) : 150 x 115 x 50 mm

Contact Now

Industrial 8-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000Base-X Ethernet Switch

Product Overview:

The LNK-IMC108GP90 Series is an advanced industrial-grade Gigabit PoE++ switch engineered for ultra high-power network deployment in extreme environments. Featuring eight 10/100/1000BASE-TX copper ports with cutting-edge IEEE 802.3bt PoE++ support, this robust switch delivers exceptional power of up to 90W per port, making it ideal for high-demand devices such as PTZ surveillance systems, 5G access points, advanced industrial equipment, and high-performance wireless systems.

Equipped with a versatile 100/1000Base-X fiber port, this switch supports flexible connectivity using a wide range of pluggable modules—including both single-mode and multi-mode fiber types with single or dual core options—enabling superior long-distance optical communication and network expansion capabilities. Built to meet the most stringent industrial durability standards, this hardened switch operates with unwavering reliability in extreme conditions, featuring a ruggedized metal enclosure that provides exceptional protection against vibration, shock, and electromagnetic interference.

Designed for seamless integration into diverse network infrastructures, this high-port-density PoE++ solution is perfect for applications including industrial automation, intelligent transportation systems, large-scale surveillance networks, and renewable energy installations. Its combination of ultra high-power PoE++ capability and reliable fiber connectivity makes it an outstanding choice for expanding network capacity while ensuring maximum power delivery and data integrity in electrically challenging environments.

Features Description:

High-Density PoE++ Connectivity: 8×10/100/1000BASE-TX copper ports with IEEE 802.3bt PoE++ support, delivering industry-leading 90W per port for power-intensive devices
Massive Power Capacity: Total PoE power budget up to 360W maximum for simultaneous operation of multiple ultra high-power devices
Advanced Fiber Uplink: 1×100/1000Base-X fiber port compatible with SFP, SC, FC, and ST connectors for flexible network expansion
Intelligent Auto-Negotiation: RJ45 ports support 10/100/1000Mbps speeds with full/half-duplex auto-negotiation and automatic MDI/MDIX crossover
Enterprise-Level Flow Control: Implements 802.3x flow control to prevent packet loss and ensure zero-frame loss in high-traffic environments
Energy Efficiency Compliance: Meets IEEE 802.3az EEE standards, reducing power consumption by up to 80% during low network activity
Dual Power Input Redundancy: Features redundant power inputs with wide-range acceptance for mission-critical applications
Industrial DIN-Rail Ready: Designed for quick installation on standard DIN-rails in control cabinets and industrial enclosures
Extended Environment Operation: Maintains full performance in extreme temperatures from -40°C to 80°C (-40°F to 176°F) for harsh deployments
Smart Power Management: Advanced power allocation algorithm ensures optimal distribution across all connected high-power devices

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3x Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	1 x 100/1000Base-X (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	360W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at/bt
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	90W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC108GP90	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC108GP90-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108GPS90-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108GPF90-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108GP90-SFP	Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

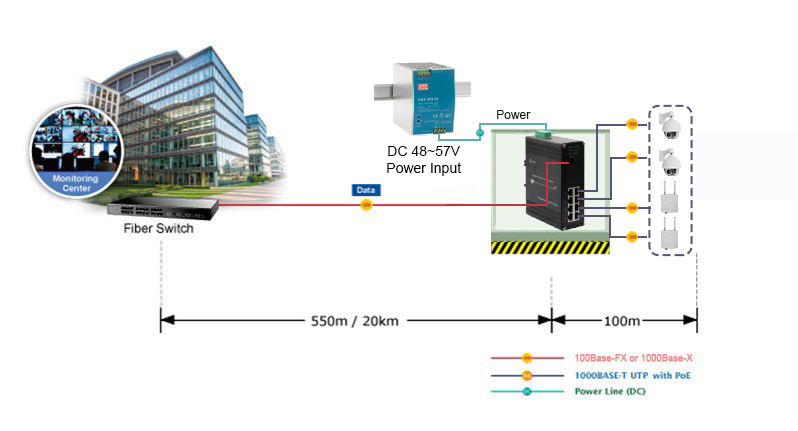

Application Display Diagram
Industrial Ethernet Switch 90W 8-Port 10/100/1000T 802.3bt PoE + 100/1000M RJ45
