Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch 100W
Product Overview:
The LNK-IMC208GP100 Series represents a high-performance industrial PoE++ switch engineered for extreme environment applications. Featuring 8× Gigabit RJ45 ports compliant with IEEE 802.3bt standard, this switch delivers up to 100W per port—making it capable of powering high-demand devices such as PTZ surveillance cameras, 5G/Wi-Fi 6 access points, heated outdoor cameras, and industrial IoT equipment over standard Ethernet cables.
Equipped with two 100/1000BASE-X fiber optic ports, the switch supports flexible connectivity using single-mode or multi-mode fiber with optional SFP, SC, ST, or FC interfaces. This enables reliable long-distance transmission, noise immunity, and seamless integration into existing fiber network infrastructures.
Designed for harsh settings, this hardened switch operates reliably across a wide temperature range (-40°C to 85°C) and offers DIN-rail mounting, making it ideal for industrial automation, intelligent transportation systems, remote security monitoring, and smart grid applications. Additional features such as redundant power inputs, IEEE 802.3az energy-efficient Ethernet, and Layer 2 management support ensure stable and scalable deployment in mission-critical networks.
Ideal for extending high-speed, high-power network connectivity to remote and challenging environments, this switch serves as a robust solution for modern industrial communication and automation projects.
Features
✅ High-Density 802.3bt PoE++ with 100W/Port: Delivers up to 100W per port through 8 Gigabit RJ45 interfaces, supporting high-power devices such as PTZ systems, industrial wireless APs, and advanced IoT terminals.
✅ Dual-Fiber Uplink with Multi-Interface Support: Features 2× 100/1000BASE-X fiber ports compatible with SFP/SC/FC/ST connectors and both single-mode/multi-mode fibers, enabling long-distance, high-bandwidth backbone links.
✅ Intelligent Ethernet Auto-Configuration: All copper ports support auto-negotiation, auto MDI/MDIX, and full/half-duplex modes for seamless plug-and-play deployment and cable compatibility.
✅ High-Capacity PoE Power Budget: Offers maximum 360W total PoE power, allowing simultaneous operation of multiple high-consumption devices in large-scale installations.
✅ Advanced Energy Efficiency Technology: Incorporates IEEE 802.3az EEE to minimize power consumption during low-data periods, reducing operational costs and environmental impact.
✅ Reliable Data Traffic Management: Implements 802.3x flow control to prevent packet loss and ensure stable performance in high-bandwidth applications.
✅ Dual Redundant Power Supply Design: Supports fail-safe operation with wide-voltage DC power inputs, enhancing system reliability for critical infrastructure.
✅ Rugged Industrial Protection Rating: Operates reliably in temperatures from -40°C to 80°C and offers robust DIN-rail mounting, suitable for control cabinets and harsh industrial environments.
Application Scenarios
-
High-Power Industrial IoT Deployments: Delivers up to 100W per port to support power-intensive devices including PTZ surveillance systems, industrial wireless access points, advanced IoT sensors, and automated machinery in smart manufacturing environments.
-
Long-Distance Fiber Optic Backbone Networks: Dual 100/1000BASE-X fiber ports with multi-interface support (SFP/SC/FC/ST) enable reliable, noise-immune connectivity for extended-distance transmission in campus networks, transportation systems, and cross-facility infrastructure.
-
Rugged Outdoor and Extreme Environment Applications: Operating within -40°C to 80°C temperature range with DIN-rail mounting capability, this hardened switch is ideal for intelligent transportation systems (ITS), railway communications, power utility automation, and outdoor security surveillance.
-
Mission-Critical Redundant Networks: Dual redundant power inputs combined with 802.3x flow control ensure continuous operation for emergency communication systems, energy grid monitoring, and industrial control networks requiring zero downtime.
-
Energy-Efficient Network Architectures: IEEE 802.3az Energy Efficient Ethernet compliance reduces power consumption in large-scale deployments including digital signage networks, smart city infrastructure, and distributed automation systems.
-
High-Density PoE++ Deployment Scenarios: With 360W total PoE budget, supports simultaneous operation of multiple high-power devices in airports, educational campuses, healthcare facilities, and large-scale retail environments.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 360W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at/bt |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 100W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet(Per Port): | Link/Activity |
| Fiber: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC208GP100 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC208GP100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC208GPS100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC208GPF100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC208GP100-SFP | Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

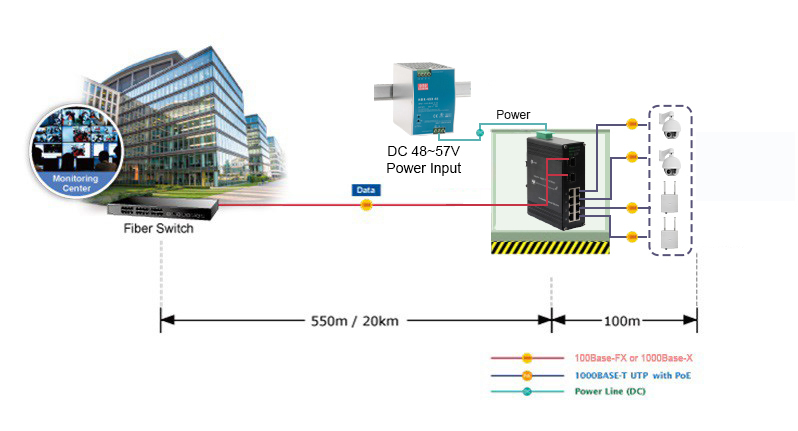

Application Display Diagram
|
|
