Industrial 5G PoE+ Injector Small Size 30W 12~48V DC Power Input
Features
1. 12~48V DC Power Input
2. 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
3. Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
4. Support 10/100/1000/2.5G/5G Base-TX
5. Extensive LED indicators for PoE diagnostics
6. Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
7. Small Size 95 x 70 x 30 mm
8. Aluminum Alloy Metal Case
9. Support DIN-rail mounting and wall mounting installation
Overview
The LNK-INJ501-30 product is a Hardened 5G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ501-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3af Power over Ethernet |
| | IEEE802.3at Power over Ethernet |
| Processing Type: | Forward |
| | Half-duplex, Full-duplex |
| Forward Filter Rate: | 7,440,000pps (5Gbps) |
| Cabling: | 10/100/1000/2.5G/5G Base-T: Cat7 or above |
| Maximum Distance: | Cat7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| LED Indicators: |
| Power: | Power Status |
| PoE: | PoE Status |
Ordering Information
| Model | Description |
| LNK-INJ501-30 | 12~48VDC Power Input Industrial 5G PoE+ Injector |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | Power Supply is to be purchased separately |

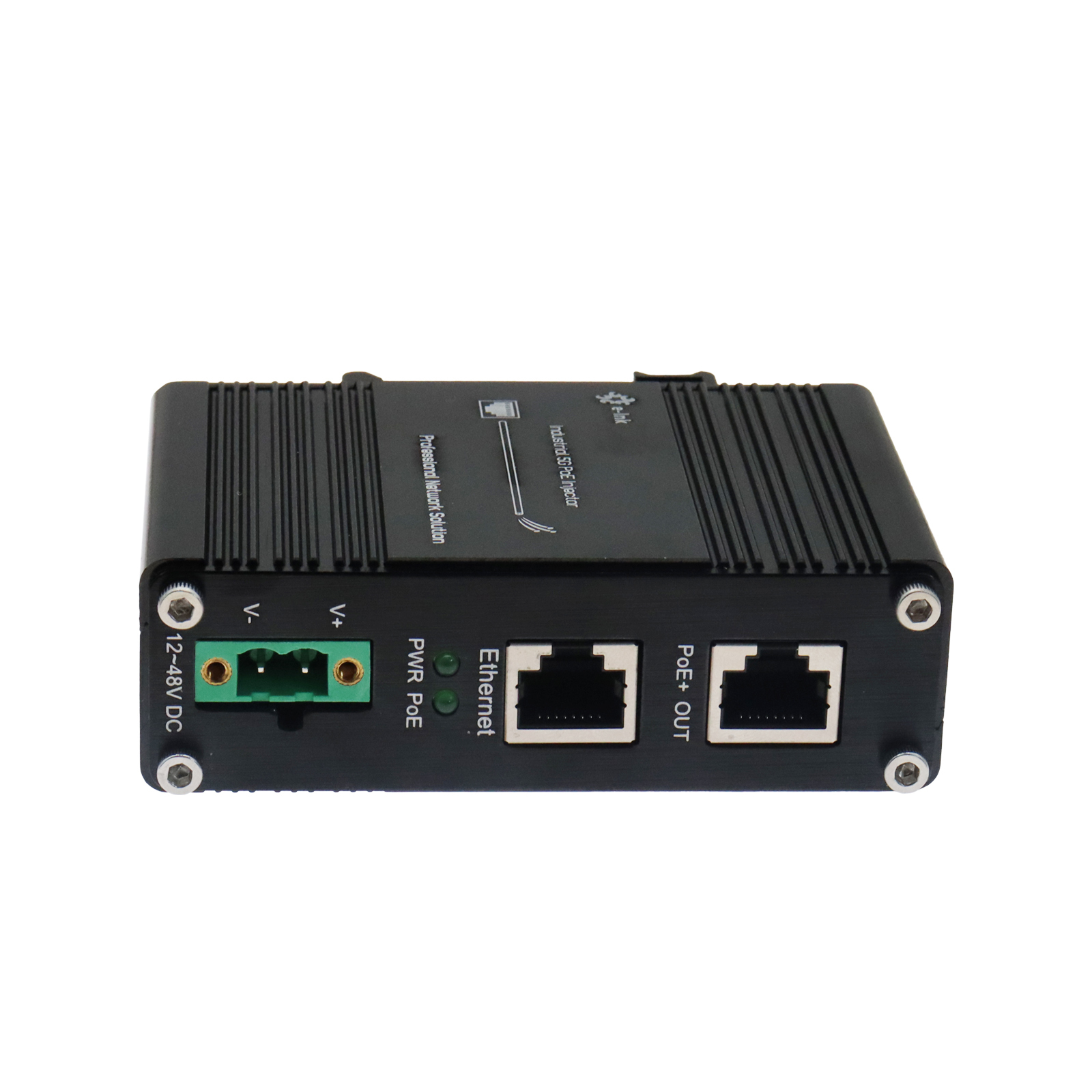

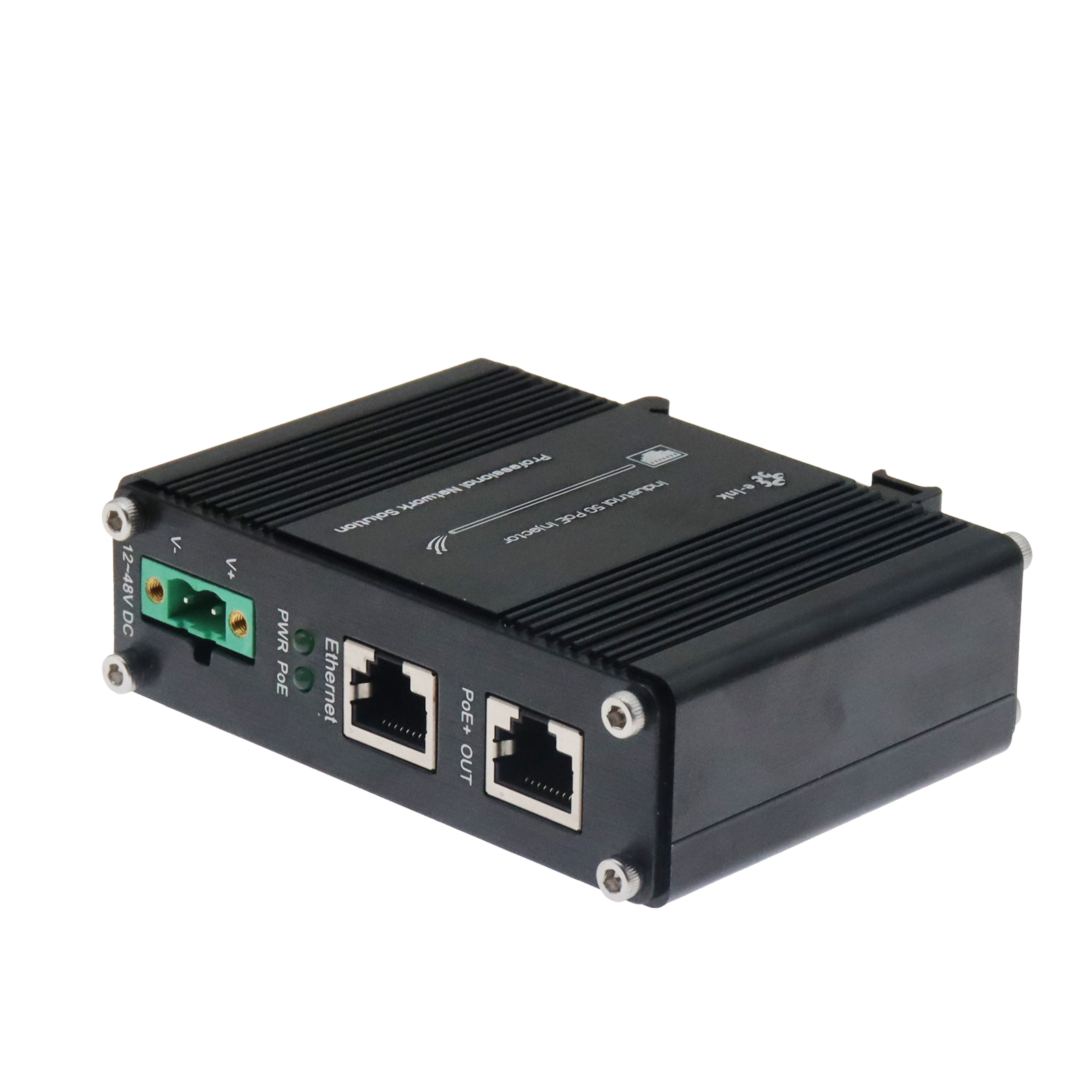

Pictures
