Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender
Model:LNK-108M
Overview
The LNK-108M is a high-performance Mini 4K/30Hz HDMI over Single-Core Multimode Fiber
Extender, featuring a pluggable design that connects directly to target devices—eliminating the
need for bulky intermediate hardware and making it ideal for space-constrained installations. As
a Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, it combines ultra-compact
dimensions with robust 4K video transmission capabilities, addressing the demand for both
portability and high-definition signal extension in modern AV systems.
This extender enables reliable extension of 4K video sources over single-core multimode
fiber up to 500m when paired with OM5 fiber, ensuring crisp, uncompressed 4Kx2K resolution
delivery to desired displays. Its core advantage lies in the absence of copper conductors: this
design minimizes RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference)
emissions, while eliminating signal loss or video quality degradation—critical for environments
with complex electrical interference, such as industrial control rooms, medical imaging facilities,
or large-scale exhibition halls.
Enclosed as a dedicated HDMI optical module, the Mini 4K/30Hz HDMI over Single-Core
Multimode Fiber Extender supports transmission of uncompressed lossless HDMI 1.4 signals
over multimode fiber at 850nm wavelength. The system consists of two units: the LNK-108M-T
(transmitter) converts HDMI signals into a single 10Gb/s serial data stream for transmission over
a single optical fiber, while the LNK-108M-R (receiver) reconverts the serial data back to a standard
HDMI signal, preserving signal integrity throughout the transmission chain.
Compliant with RoHS standards and manufactured with lead-free materials, the extender meets
strict environmental regulations in Europe and China, aligning with global sustainability requirements.
Its strong anti-interference capability ensures stable signal operation even in harsh electrical environments,
while the compact form factor simplifies integration into AV racks, wall-mounted enclosures, or portable
multimedia setups. Suitable for large-screen display systems, high-end conferencing rooms, home
entertainment centers, digital signage networks, and professional AV installations, this Mini 4K/30Hz
HDMI over Single-Core Multimode Fiber Extender offers a reliable, space-efficient solution for long-
distance 4K video transmission with zero quality compromise.
Features
► Supports HDMI Video up to 4K/30Hz
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber
► Standard HDMI1.4 Connector
► Integrated USB Connector for Power
► Low power consumption, only the RX module (Display side) needs external power supply
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
► Uses Small, Reliable LC Optical Connector
Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Transmission Distance | 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
| Operating Temperature | -20°C to + 70°C |
| Storage Temperature | -40°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX+RX: 75mA |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note | The module does not support HDCP and EDID transparent transmission |
Ordering lnformation
| Model | Description |
|
| LNK-108M | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |

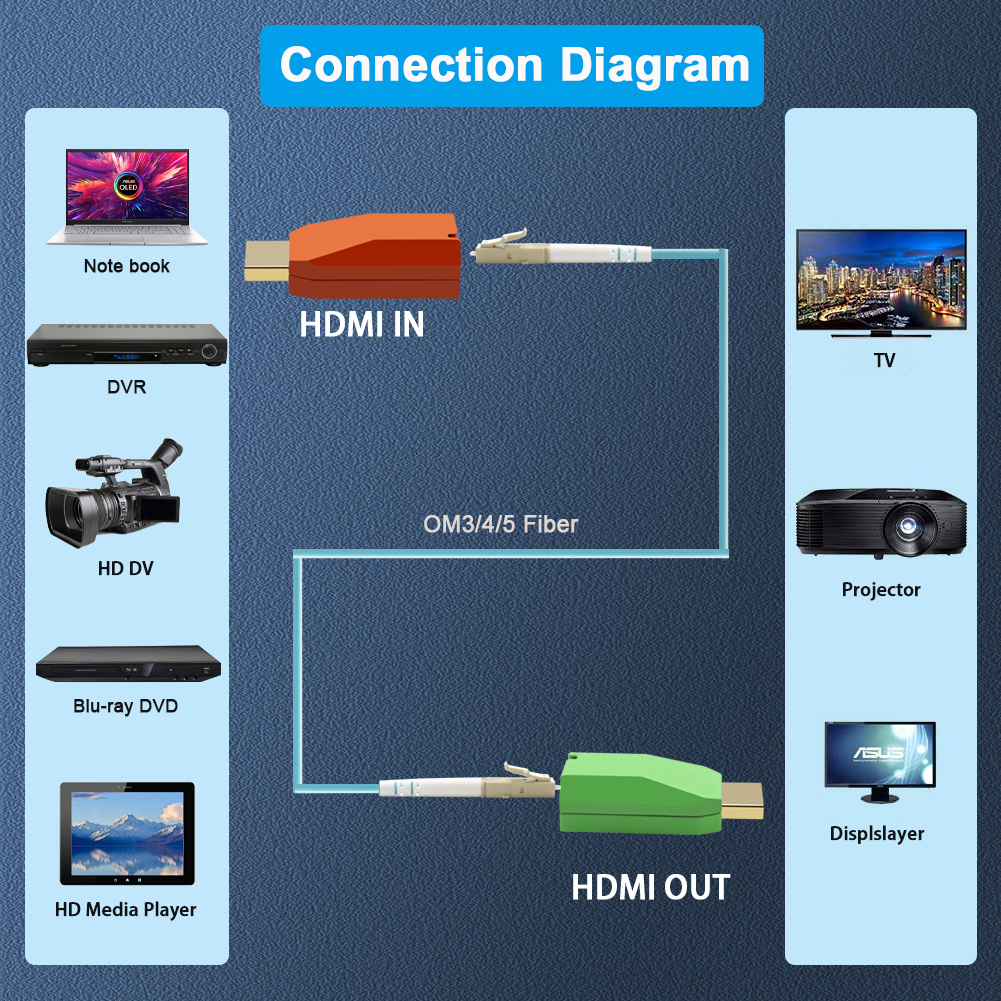

Application
