12~48V DC Power Input Industrial Gigabit PoE+ Injector

Name: 1248V DC Power Input Industrial Gigabit PoE Injector
Brand: E-link
Price: 1 USD

Quality 12~48V DC Power Input Industrial Gigabit PoE+ Injector for sale

Brand Name : E-link

Model Number : ZP-HINJ301-30

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 95 x 70x 36mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC (Terminal Block)

Casing : Aluminum Case

Contact Now

12~48V DC Power Input Industrial Gigabit PoE+ Injector

Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 36 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

Overview

The ZP-HINJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

ZP-HINJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

Ordering Information

Model	Description
ZP-HINJ301-30	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately


12~48V DC Power Input Industrial Gigabit PoE+ Injector

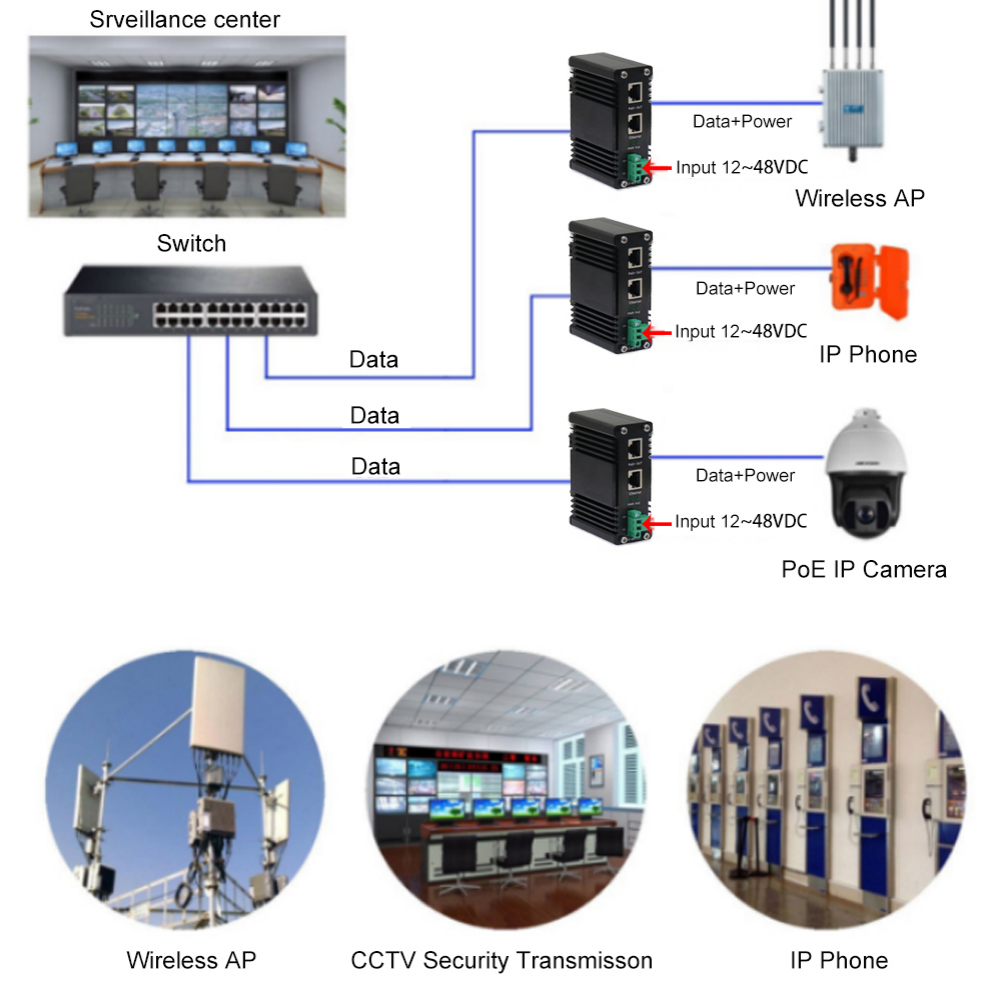

Application

12~48V DC Power Input Industrial Gigabit PoE+ Injector
