120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
Product Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.
· Distance up to 120m over UTP CAT5E/6 cable.
· Video resolution max up to 1920*1080@60Hz.
· Support keyboard and mouse control .
· Have a local HDMI loop-out ;
· Support IR(38khz) signal pass back transmission .
· HDMI 1.3 and HDCP 1.2 standard.
· High compatibility, can auto-match source and display device.
· Built-in automatic adjustment system, make the image smooth, clear and stable.
Overview

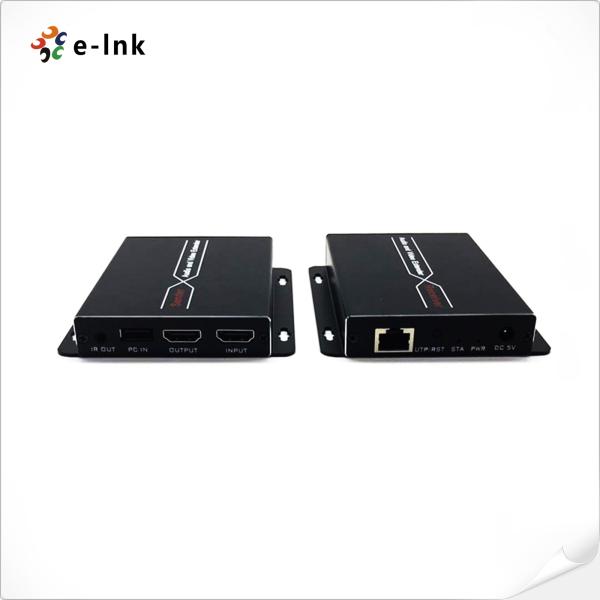

This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI 1.3; HDCP 1.2
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
6.75Gbps
|
|
Resolution
|
Max: 1920X1080@60Hz(backward-compatible)
|
|
Connector
|
HDMI-A
|
|
Impedance
|
100Ω
|
|
IR
|
Interface
|
3.5mm earphone seat
|
|
Signal direction
|
Unidirectional
|
|
Signal type
|
Digital
|
|
IR frequency
|
38kHz
|
|
USB
|
Interface
|
PC: Standard MINI-USB or PS2
K/M: Standard USB, PS2 (optional)
|
|
USB Signal
|
HID Signal
|
|
Ethernet
|
Interface
|
RJ45(568B)
|
|
Transmission distance
|
UTP CAT5e/---120m
|
|
Other
|
Power supply
|
The power adapter: DC 5V
|
|
Power dissipation
|
MAX 4W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
100*97.5*17mm
|
|
The warranty
|
1 year free warranty
|
Ordering Information
|
Part No
|
Description of product
|
|
LNK-HDE-120KVM
|
120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
|
