Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

Brand Name : E-link

Model Number : ETH-DIMC2424MP series

Certification : ISO9001, CE, RoHS, FCC

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail mount

Dimensions (WxDxH) : 155 x 115 x 85 mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Optical Port : 4 x 1000Base-X SFP

Input Power : 48~57VDC, Redundant Power (6-pin Terminal Block)

Casing : Aluminum Case

Contact Now

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch



Advantages

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Overview

ETH-DIMC2424MP series is the L2+ managed 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.



Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

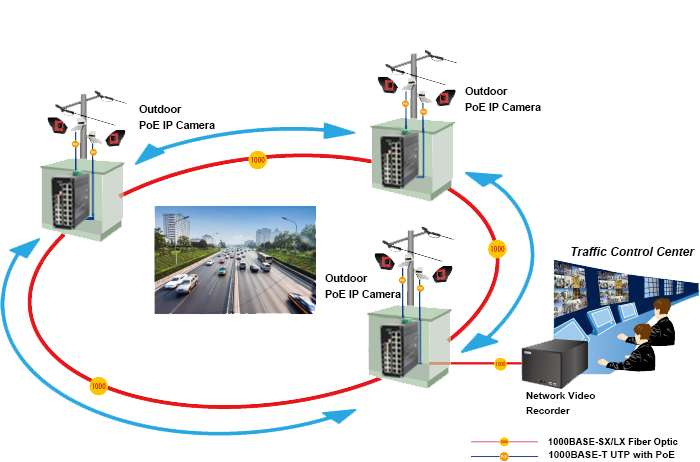

Application

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch



Ordering Information

Model

Description

ETH-DIMC2424MP

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
