8G+2SFP Ring Type Fiber Ethernet Switch
Product Advantages
► Support maximum 8 10/100/1000M adaptive RJ45 ports and 2 1000M SFP port uplink
► It can build 1000M fiber internet, support RSR (Rapid Super Ring technology)
► Support SFP hot plug
► Support Jumbo frames
► Support 100/1000M port full rate, full-duplex non-blocking forwarding
► Support 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth
► Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating
Overview
LNK-R2800G-SFP series is ten ports 100M/1000M Ethernet Switch, provides 8 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP port uplink, supports Web management and SNMP management(optional).
LNK-R2800G-SFP supports SFP hot plug; support RSR(Rapid Super Ring) technology. Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Technical Indexes
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX Fast Ethernet,
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
IEEE802.3x Flow control
IEEE802.1q VLAN
IEEE802.1p QoS
IEEE802.1d Spanning Tree |
|  Wavelength
| SFP Module: 850nm/1310nm/1490nm/1550nm |
| Distance | 1000M SFP
multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m |
| Port | 8 1000M RJ45 ports : 10/100/1000Mbps
2 1000M SFP: 1 Gbps, 1000M SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A |
| Power consumption | 10W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 70mm (H)×290mm(W)×185mm (D) |

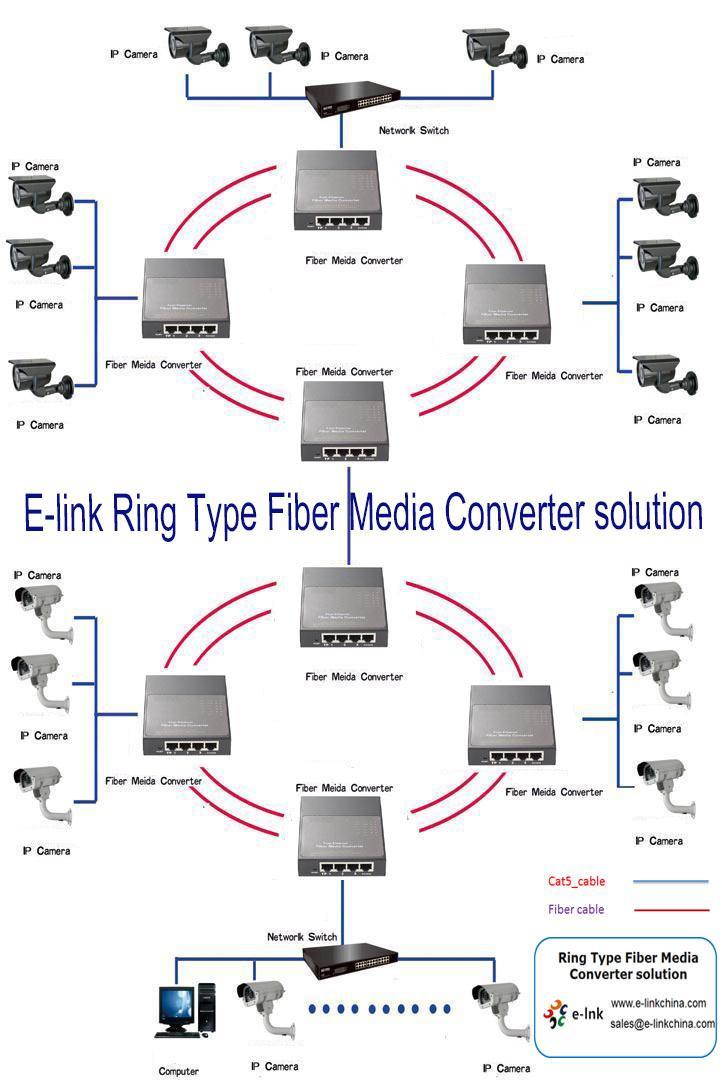

Application
