1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Name: 1248Ch HDMI Fiber Optic with External Audio Extender
Brand: E-link
Price: 1 USD

Quality 1/2/4/8Ch HDMI Fiber Optic with External Audio Extender for sale

Brand Name : E-link

Model Number : LNK-HDMI-100

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 500pcs/mouth

Delivery Time : 3-12working days

Packaging Details : standard export package

Temperature : -5°C to +75°C

Humidity : 5 to 90 % RH (no condensation)

Audio format : 44.1K,48K,96K,176K,192K

RS232 port : 3 ports industrial terminal

RS232 Baud rate : Support 115200 and all below

Contact Now

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

HDMI Fiber Extender Advantage

► Full digital, Uncompressed HD optical fiber transmission

► Support Full HD 1920*1200@60Hz

► The attenuation of optical module SFP low to -3db

► 1 channel analog audio(3.5mm)

► Support HDMI 1.3b Protocal

► Support KVM

Overview

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed

digital HD video and high-speed digital optical fiber transmission technology advanced, It

can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR)

to long distance terminal easily, with strong anti-interference performance, ensure the signal

completed and stable.

HDMI Fiber Extender Picture

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Technical Indexes

Temperature	-5°C to +75°C
Humidity	5 to 90 % RH (no condensation)
The signal of Input and output	HDMI
Protocal	HDMI1.3b,HDCP1.2
Pixel band width	300MHz
Video format	800x600P60 1024x768P60 1280x800P60 1280x1024P60 1360x768P60 1366x768P60 1400x1050P60 1440x900P60 1600x900P60 1600x1200P60 1680x1050P60 1280x720P50 1280x720P60 1920x1080P24 1920x1080P25 1920x1080P30 1920x1080P50 1920x1080P60 1920x1080I60 1920x1080I50 1920x1200P60
The signa of Audio input and output	3.5MM Audio
Audio format	44.1K,48K,96K,176K,192K
RS232 port	3 ports industrial terminal
RS232 Baud rate	Support 115200 and all below
RS 232 Data bits	8 bits
KVM receiver port	A USB port
KVM transmitter port	B USB port
Fiber port	LC
Fiber module	SFP single mode
Fiber wavelength	1550/1310nm
Fiber band width	3Gbps

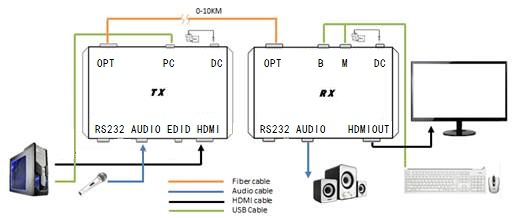

Application

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Ordering Information

Item	Description
LNK-HDMI-100	HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-200	HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-400	HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-800	HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
